Single Piece Masonry Hanger 47 x 175mm
Single Piece Masonry Hanger 47 x 175mm
- Product Code: U1448
- Delivery Time: 1 - 2 days
- Brand: Teco
- Model: FHM47/175
- Weight: 0.46kg
Single Piece Masonry Hanger 47 x 175mm

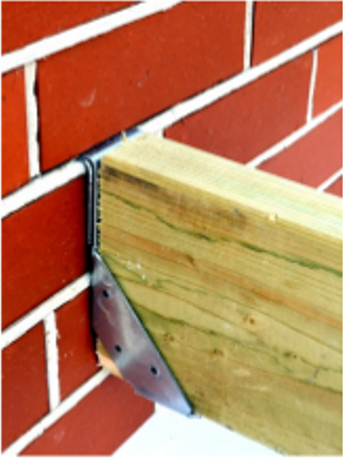

47mm x 175mm Single Piece Joist Hanger is designed to support timber joists built into brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber-to-timber applications by securely fixing the masonry flange to timber or steel beams using appropriate fixings. The straight top flange and a lock plate allow the hanger to be transformed into a straddle or hook over configuration, without the need for special equipment. The hanger has a long-term safe working load of 5.4 kN.
FIXING INSTRUCTIONS for 47x175mm Single Piece Masonry Hanger
- The back plate of the hanger should lie flat against the vertical masonry support.
- Masonry flange should have a minimum of 3 courses (675mm masonry) above.
- Both supporting and above masonry should be allowed to cure before any load is applied.
- Joist should be square-cut and fit snugly against the back of the hanger - maximum allowable gap is 6mm.
- Nail the side flanges with 30 x 3.75mm galvanized square twist nails or equivalent. For stainless steel hangers, use 30 x 3.75mm annular ring shank nails.
- Utilize HD straps for lateral restraint.
- The masonry flange should always be securely fixed or adequately embedded and must never be placed in dry slots.
- Use appropriate fixings.
- Always ensure that compatible corrosion-resistant fixings are used, i.e., do not mix galvanized fixings with stainless steel products.
- Use mortar of the correct strength as per the British Standard.
SPECIFICATION
- Galvanized steel to EN 10346 DX51D Z600.
- Tested by CERAM Research Ltd Notification Body No.1289.
- Manufactured to EN 845-1:2013.
Masonry-Hangers_data_sheet.pdf
Brand: Teco
Model: MFT47/404BA - 47x179
Delivery Time: 1 - 2 days
47mm x 179mm Multifunctional Joist Hanger serves as a Face Fix Joist Hanger, constructed from 2mm thick pre-galvanized mild steel in accordance with the specifications outlined in BS EN 10327:2004 DX51D+Z275. This hanger is meticulously designed to facilitate timber-to-masonry and timber-to-timber f..
Brand: Teco
Model: WM132x150
Delivery Time: 3 - 5 days
132mm x 150mm Welded Masonry Joist Holder is designed to provide sturdy support for 150mm high timber joists. The joist holder's actual height is 140mm, and the flange is integrated into brick or block walls. It has a minimum crushing strength of 3.5N/mm. The Welded Masonry Joist Holder is also suit..
Brand: Teco
Model: STD - 100x300
Delivery Time: 1 - 2 days
100x300mm Woody Standard Joist Hanger is a timber-to-timber joist hanger crafted from 1mm thick pre-galvanized mild steel, adhering to the specifications outlined in BS EN 10327:2004 DX51D+Z275. It's also offered in stainless steel. This hanger incorporates a base tag, designed to expedite precise i..
Brand: Teco
Model: WM50x200
Delivery Time: 3 - 5 days
50x200mm Masonry Joist Hanger with Welded Construction
Elevate the support for your timber joists integrated into brick or block walls with our remarkable 50mm x 200mm Masonry Joist Hanger. Engineered to withstand a minimum crushing strength of 3.5N/mm, this versatile hanger is also suitable ..
Brand: Teco
Model: FHMR47X200R115
Delivery Time: 1 - 2 days
47 x 200mm Masonry Return Hanger R115mm is designed for similar applications and installation as the standard Masonry Joist Hangers. The return adds additional lateral support by wrapping around the back of the masonry or timber. There is a 25mm drop on the return flange as standard but many special..
Brand: Teco
Model: FHMR215
Delivery Time: 3 - 5 days
215mm Single Piece Masonry Hanger Lock Plate serves as an additional component for use with the FHM Single Piece Joist Hanger and the WM Welded Masonry Joist Hanger. This plate can be conveniently converted into a hook-over joist hanger without the need for special tools or rivets. Simply insert the..
