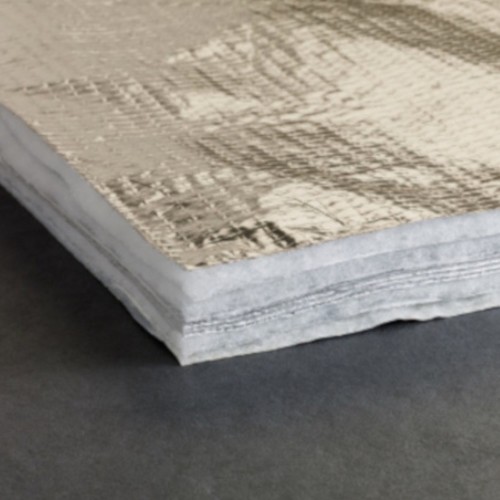

45mm Actis HControl Hybrid Multi-Foil Insulation - 6.25m x 1.6m roll
45mm Actis HControl Hybrid Multi-Foil Insulation - 6.25m x 1.6m roll
- Product Code: U4156
- Delivery Time: 2 - 3 Days
- Brand: Actis
- Model: 6.25m x 1.6m - 10m3
- Weight: 9.15kg
45mm Actis HControl Hybrid Multi-Foil Insulation - 6.25m x 1.6m roll
Length: 6250mm
Width: 1600mm
Thickness: 45mm
Roll coverage: 10m2
Weight/m2: 0.88kg
Weight: 9.15kg
Thermal Conductivity: 0.040W/mK
Fire Rating (Reaction to Fire): F
45mm Actis HControl Hybrid is a thin multi-foil insulation that combines insulation, air tightness, moisture resistance and reflective properties. Actis HControl Hybrid blocks the water vapour diffusion through the fabric of the building, preventing the risk of condensation. As it is airtight, it prevents air leakage and thermal convention. It does not generate fibre dust. Actis HControl Hybrid can be cut easily and stapled or nailed. The maximum span of rafters is 600mm. This multi foil insulation can be used on uneven surfaces offering high quality insulation without air leakage.

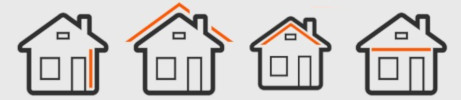

APPLICATION
Actis HControl Hybrid& is mainly used for insulating
- pitched roofs,
- loft spaces,
- over-rafter, under-rafter,
- loft conversion,
- walls,
- under ceilings.
CHARACTERISTICS
- Maintenance-free and cost-effective,
- Resistant to moisture,
- High tensile strength,
- Highly durable and flexible,
- space saving,
- Easy to cut and install,
- Can be nailed or stapled,
- Provides insulation both during winter and summer,
- No fibre dust.
INSTALLATION
CERTIFICATION
